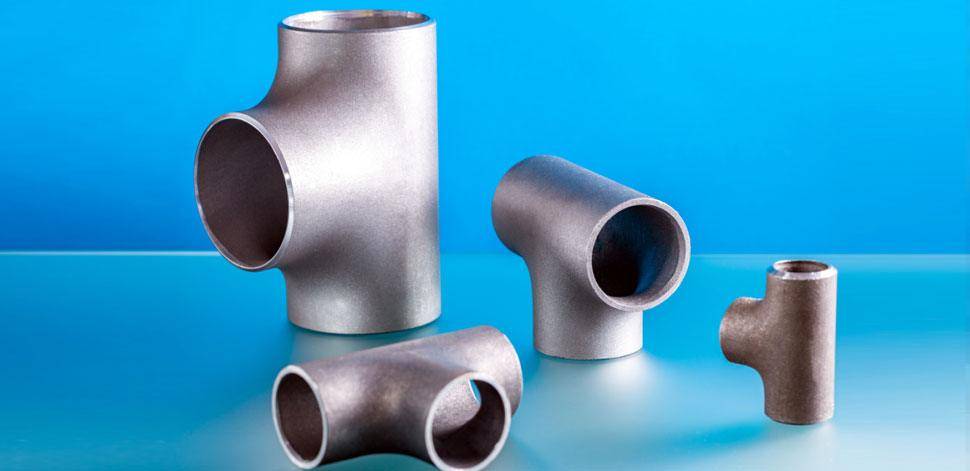

Incoloy 825 Buttweld Fittings Supplier, Stockist
Incoloy 825 Pipe Fittings, Alloy 825 Pipe Fittings, Inconel 825 Buttweld Fittings, Alloy 825 Fittings, Incoloy 825 Buttweld Fittings, Incoloy Alloy 825 Buttweld Fittings Stockist, Alloy 825 Butt weld Fittings, Inconel 825 Pipe Fittings, Incoloy 825 Buttweld Fittings Supplier in Mumbai, India.
Incoloy 825 Buttweld Fittings from Pavan Metal Industries are designed and manufactured to meet the highest standards of quality, reliability, and safety. Made using superior grade alloys, these fittings offer superior corrosion resistance, exceptional mechanical strength, and excellent weldability. These buttweld fittings also resist oxidation, carburization, and sulfidation at high temperatures.
Table of Content
- What is Incoloy 825 Buttweld Fittings?
- Incoloy 825 Pipe Fittings Specification
- Equivalent Material of Incoloy 825 Buttweld Fittings
- Different Types of Incoloy Alloy 825 Pipe Fittings
- Specialized in Incoloy 825 Buttweld Fittings
- Chemical Properties Of Incoloy 825 Pipe Fittings
- Incoloy 825 Buttweld Fittings Mechanical Properties
- Incoloy 825 Buttweld Fitttings Weight Chart
- Incoloy 825 Seamless Butt Weld Pipe Fittings Tolerance Chart
- Sch 80 Incoloy Alloy 825 Pipe Fittings Dimensions
- Incoloy 825 Seamless Pipe Fittings Standards
- ASME B16.9 Incoloy 825 Fittings Pressure-Temperature Ratings
- Incoloy 825 Pipe Fittings Price List
- Typical Application of Incoloy Alloy 825 Pipe Fittings
- Incoloy 825 Buttweld Fittings Value Added Services
- Export Destinations For Incoloy 825 Buttweld Pipe Fittings
Incoloy 825 Fittings, Incoloy 825 Elbow ASME B16.9, 2.4858 Pipe Fittings, Incoloy® Alloy 825 Reducers, Incoloy 825 Butt weld Pipe Fittings Manufacturers, UNS N08825 Buttweld Fittings, Alloy 825 Buttweld Tee, Inconel 825 Pipe Fittings Suppliers, Incoloy 825 Pipe Fittings Stockist in India.
Our Incoloy 825 Buttweld Fittings are designed for various industrial applications such as oil refineries, petrochemical plants, chemical processing units, and power generation facilities. We offer multiple shapes and sizes that can be customized according to client requirements. Our quality control team makes sure that all products meet the highest standards with our commitment to providing superior quality products.
What are Incoloy 825 Buttweld Fittings?
Incoloy 825 Buttweld Fittings are corrosion-resistant components that join pipes and tubes in the industrial and manufacturing sectors. These fittings are made of a nickel-iron-chromium alloy, making them highly resistant to acids, alkalis, salt solutions, and chloride stress corrosion cracking. Incoloy 825 Buttweld Fittings also have superior mechanical properties, making them ideal for high-pressure pipe systems.
What are the features of Incoloy 825 Buttweld Fittings?
The features of Incoloy 825 Buttweld Fittings include excellent resistance to stress corrosion cracking when exposed to halides such as chlorine or bromide; outstanding resistance to pitting and crevice corrosion; superior strength at high temperatures; good weldability; and low electrical resistivity. These features make them ideal for chemical processing, petrochemical production, and many other industries.
What are the advantages of Incoloy 825 Buttweld Fittings?
Incoloy 825 Buttweld Fittings offer many advantages, such as high-temperature strength and reliability; improved protection from acids, alkalis, and other corrosive elements; a wide operating temperature range; and excellent weldability with both ferritic and austenitic stainless steels.
What are the applications of Incoloy 825 Buttweld Fittings?
In terms of applications, these fittings are widely used for pipe systems that require exceptional corrosion resistance, such as oil refineries, power plants, pharmaceutical plants, food processing facilities, seawater systems, and other industrial environments. They are also highly suited for low-temperature applications due to their superior mechanical properties at low temperatures. Incoloy 825 Buttweld Fittings are available in various sizes and configurations, making them suitable for most piping requirements. They also come with multiple customization options to meet specific application needs.
In conclusion, Incoloy 825 Buttweld Fittings are corrosion-resistant components that join pipes and tubes in industrial environments. They offer outstanding pitting and crevice corrosion resistance and excellent weldability with ferritic and austenitic stainless steels. Their superior mechanical properties make them ideal for high-pressure applications, while their wide operating temperature range makes them suitable for many industries.
Incoloy 825 Buttweld Fittings Grades and Specification
- Standards: ASTM B366 / ASME SB366
- Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Size: Seamless Butt Weld Fittings : 1/2″ –
10″
Welded Butt Weld Fittings : 1/2″ – 48″ - Type: Seamless / Welded / Fabricated
- Schedule: Sch 5 TO Sch XXS.
- Thickness: 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Form: 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End
Equivalent Material of Incoloy 825 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Specialized in Incoloy 825 Buttweld Pipe Fittings
- Incoloy 825 Buttweld Fittings Stockist in Mumbai
- Inconel 825 LR 180 Return Bends
- Incoloy 825 Buttweld Fittings at Best Price In India
- Nickel Alloy 825 Buttweld Fittings
- Incoloy® Alloy 825 Swage Nipple
- ANSI/ASME B16.28 Butt Weld Elbow Incoloy 825
- 825 Incoloy Butt weld Reducing Cross
- Incoloy® Alloy 825 90 Degree LR Elbow
- Incoloy 825 45 Deg Short Radius Elbow
- Inconel 825 Buttweld Pipe Fittings Stocks
- Incoloy 825 Pipe Fittings Stockholder
- Incoloy 825 Buttweld Fittings Manufacturer
- Incoloy 825 Seamless Fittings
- Alloy 825 Pipe Fittings in India
- Incoloy Alloy 825 Eccentric Reducers
- Alloy 825 Butt weld Pipe Fittings Supplier
- Incoloy 2.4858 Welded Pipe Fittings
- 825 Incoloy Buttweld Fittings
- Incoloy 825 Industrial Buttweld Fittings
- ASTM B366 825 Buttweld Fittings
- Inconel 825 Concentric Reducer
- Incoloy 825 Two Halve Butt weld Fittings
- Alloy 825 Pipe Nipple
- Incoloy 825 Pipe Fittings Exporters
- Inconel 825 Buttweld Equal Cross
- Incoloy Alloy 825 Bends
- Incoloy 825 SR Elbow
- Incoloy 825 180° Long Radius Elbow
- ASME SB366 825 Incoloy Pipe Cap
- Incoloy Alloy 825 U Bend
- Inconel UNS N08825 Pipe Fittings
- Alloy 825 Unequal Pipe Tee
- Incoloy 825 Buttweld Fittings Stockist In India
- ANSI/ASME B16.9 Pipe Fittings Dimensions
- ASTM B366 825 Incoloy Reducing Elbow
- Incoloy® Alloy 825 Two Joint Pipe Fittings
- Incoloy 825 Buttweld Fittings Supplier in India
- Alloy 825 1D, 2D, 3D, 5D Buttweld Elbow
- Inconel 825 Pipe End Cap
- Alloy 825 Buttweld Fittings Wholesale in Mumbai
- Nickel Alloy 825 Long Stub Ends
- Incoloy 825 Short Stub Ends
Chemical Properties Of Incoloy 825 Buttweld Fittings
| Grade | C | Mn | Si | Cu | S | Fe | Ni | Cr | AI | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 1.50 – 3.00 | 0.03 max | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Incoloy 825 Buttweld Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Incoloy 825 Buttweld Fitttings Weight Chart
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Incoloy 825 Seamless Butt Weld Pipe Fittings Tolerance Chart
| BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
| Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Schedule 80 Incoloy 825 Pipe Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Incoloy 825 Seamless Butt weld Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Incoloy 825 ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Incoloy 825 Buttweld Fittings Price List
- incoloy alloy 825 90 deg. pipe bend
FOB Price: US$ 5.00 - 220.00 / Piece - inconel 825 welded pipe fittings
FOB Price: US$ 8.00 - 330.00 / Piece - inconel 825 buttweld equal tee price per kg
FOB Price: US$ 5.80 - 210.00 / Piece - incoloy 825 unequal pipe cross
FOB Price: US$ 1.00 - 120.00 / Piece - ansi b16.9 incoloy alloy 825 fittings
FOB Price: US$ 3.00 - 320.00 / Piece - alloy 825 pipe fittings price per kg
FOB Price: US$ 6.00 - 480.00 / Piece - top quality incoloy 825 buttweld fittings with factory price
FOB Price: US$ 2.00 - 10.00 / Piece - cheap price incoloy 825 buttweld pipe fittings
FOB Price: US$ 1.00 - 210.00 / Piece - incoloy alloy 825 seamless pipe fittings price per kg
FOB Price: US$ 0.10 - 179.00 / Piece - incoloy® alloy 825 butt weld fittings price per ton
FOB Price: US$ 15.00 - 180.00 / Piece - ASTM B366 incoloy 825 fittings
FOB Price: US$ 3.00 - 19.00 / Piece - alloy 825 buttweld reducing tee
FOB Price: US$ 3.00 - 210.00 / Piece
Incoloy 825 Seamless Pipe Fittings Stockists | Incoloy 825 Fittings Manufacturers | Incoloy Alloy 825 Pipe Fittings Exporters | Incoloy 825 Butt weld Fittings | Incoloy® Alloy 825 Buttweld Fittings Latest Price | Supplier of Incoloy 825 Pipe Fittings | Incoloy 825 Buttweld Pipe Fittings Suppliers
Incoloy 825 Buttweld Fittings Value Added Services
- Same Day Shipping
- 24-Hour Emergency Service
- Bending
- Custom Machining Fittings
- Material testing
- Centreless Grinding
- Fabricate pipe Fittings
- Forging
- Hot Forming
- Cold Forming
- Inspection
- Marking
- Heat Treatment ( Hardening & Tempering )
- CNC Machining
- Material As Per Drawing
- Special Packaging & Shipping For Domestic And Export
- Minor Fabrication
Export Destinations For Incoloy Alloy 825 Pipe Fittings
Czech Republic, Estonia, Portugal, China, France, Bulgaria, Azerbaijan, Nigeria, Iran, Trinidad & Tobago, Austria, Lithuania, Kuwait, Kenya, Japan, Thailand, Norway, Gambia, Romania, Lebanon, Chile, Mongolia, Ghana, columbia, Ireland, Jordan, United States, Bhutan, Argentina, Lahore, Israel, Qatar, New Zealand, Canada, Brazil, Colombia, Iraq, Slovakia, Afghanistan, Poland, Gabon, Ukraine, Spain, Switzerland, Ecuador, United Arab Emirates, Sweden, Algeria, Zimbabwe, Saudi Arabia, Greece, Tibet, Macau, South Korea, Tunisia, Australia, Puerto Rico, Vietnam, Mexico, Singapore, Germany, Bolivia, Italy, Nepal, Finland, Peru, Bahrain, Pakistan, Hungary, Taiwan, Turkey, Croatia, Morocco, Angola, Netherlands, Bangladesh, India, Libya, Serbia, Russia, Kazakhstan, Malaysia, Hong Kong, Belgium, Namibia, Oman, South Africa, Sri Lanka, Philippines, Costa Rica, Egypt, Yemen, Belarus, Venezuela, United Kingdom, Denmark, Indonesia, Algiera.
Domestic Supply For Incoloy 825 Butt weld Fittings
Howrah, Chandigarh, Bhopal, Hyderabad, New Delhi, Haryana, Bengaluru, Navi Mumbai, mumbai, Ludhiana, Noida, Nashik, Pune, Ahmedabad, Pimpri-Chinchwad, Ernakulam, Thiruvananthapuram, Secunderabad, Kanpur, Chennai, Rajkot, Kolkata, Gurgaon, Thane, Jaipur, Surat, Nagpur, Faridabad, Ranchi, Jamshedpur, Visakhapatnam, Indore.
