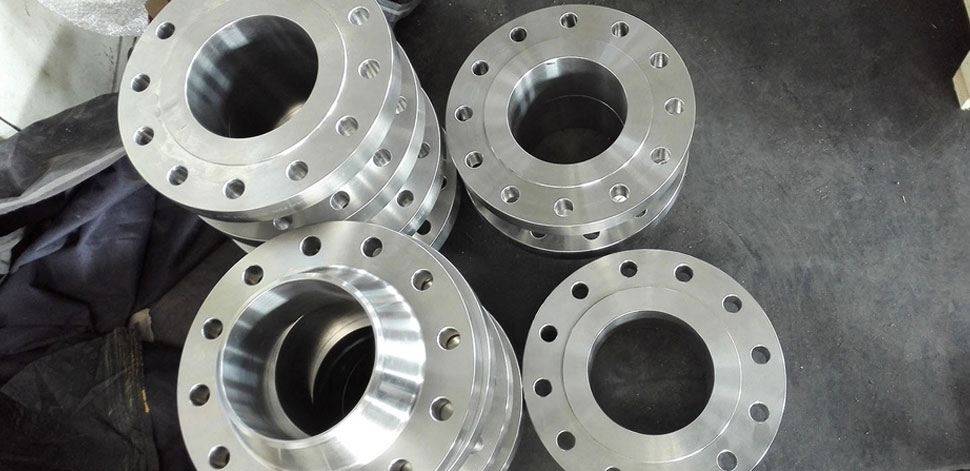

Stainless Steel 316Ti Flanges Supplier, Stockist
316Ti Stainless Steel Flanges, 316Ti SS Flat Face Flange, 316Ti Stainless Steel Flange, SS 316Ti Flange, SS 316Ti Raised Face Flange, UNS S31635 Flange, ASTM A182 F316Ti Flanges, SS 316Ti Flanges Stockist, SS 316Ti Pipe Flange, Stainless Steel 316Ti Flanges Supplier in Mumbai, India.
Pavan Metal Industries specializes in providing high-quality 316Ti Stainless Steel Flange with excellent corrosion resistance, weldability, formability, and tensile strength. We are reputed SS 316 Flanges exporters across the globe. These flanges are ideal for use in highly corrosive environments, such as petrochemical plants, power plants, automotive, and food processing equipment. Our flanges are made with the highest-grade material and craftsmanship to meet your industrial requirements.
We offer various sizes, dimensions, and pressure ratings to fit your needs. Our experienced engineering team even provides customized solutions to meet complex requirements.
Count on Pavan Metal Industries for durable, high-performance stainless steel flanges. Contact us today to find out how we can help with your flange needs.
Table of Content
SS 316Ti Flanges Suppliers, Steel 316Ti Slip on Flanges, 316Ti SS BLRF Flange, Stainless Steel 316Ti Flanges Manufacturers, 1.4571 Weld Neck Flanges, ANSI / ASME B16.5 316Ti Stainless Steel Plate Flange, ASME SA182 F316Ti SS Socket Weld Flange, Stainless Steel 316Ti Flanges Stockist in India.
Stainless Steel 316Ti Flanges are made from the alloy SS316Ti. This alloy is composed mainly of iron, chromium, and nickel with trace amounts of other elements such as molybdenum, copper, titanium, and nitrogen. It has excellent corrosion resistance characteristics, ideal for highly corrosive environments.
What are the features of SS 316Ti Flanges?
The main features of 316Ti Stainless Steel Flanges include superior tensile strength and creep resistance due to their high heat-resistant properties; good weldability; low thermal expansion rate; and high-temperature strength up to 1370° C (2500° F). Also, it offers superior formability and can be cold-worked very quickly.
What are the advantages of SS 316Ti Flanges?
The advantages of Stainless Steel 316Ti Flanges include excellent corrosion resistance, good weldability and formability, low thermal expansion rate, high-temperature strength, good tensile strength, and creep resistance. These features make it suitable for various applications, including petrochemical and power plants. It is also used in the automotive industry and food processing equipment due to its superior corrosion resistance.
Stainless Steel 316Ti Flanges Specification
- Standards: ASTM A182 / ASME SA182
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Size: 1/2" (15 NB) to 48" (1200NB)
- Class: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Flange Face Types: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Specialized manufacturer of: Rtj Flanges, Pn16 Flanges, DIN 2566 pn16, DIN 2566 en 1092 1, DIN 2566 pn10, Lap Joint Flanges, Loose Flange, Orifice Flange, AS 4087 Water Flanges, Weld Neck Flanges, Flanges, Slip-On Flanges, Socketweld Flange, Plate Flanges, Large Diameter Flanges, Sorf Flange, Blind Flanges, Table Flange
Equivalent Material of Stainless Steel 316Ti Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
Specialized in Stainless Steel 316Ti Flanges
- 316Ti Stainless Steel Custom Flanges
- 316Ti Stainless Steel Ring Type Joint Flanges
- Stainless Steel 316Ti SORTJ Flanges
- Stainless Steel 316Ti Flange
- SS 316Ti Flanges Stockist in Mumbai
- Stainless Steel 316Ti Spectacle Blind Flanges
- SS 316Ti WNRF Flanges
- Stainless Steel 316Ti Slip On Flat Face Flange Stocks
- SS 316Ti Tongue and Groove Flanges in India
- Stainless Steel 316Ti Industrial Flanges
- Stainless Steel 316Ti Flanges Pressure Rating
- Stainless Steel 316Ti Flanges Stockholder
- SS 316Ti ASME B16.36 Orifice Flange
- Stainless Steel 316Ti RTJ Flanges Supplier
- Stainless Steel 316Ti Reducing Flange
- Austenitic Stainless Steel 316Ti Flanges
- 316Ti SS Flangeolet
- Stainless Steel 316Ti NPT Threaded Flanges
- Stainless Steel 316Ti Nipoflange
- SS 1.4571 Flanges
- SS 316Ti BSP Threaded Flanges
- SS 316Ti Flanges at Best Price In India
- 316Ti Stainless Steel Flanges Manufacturer
- 316Ti Stainless Steel SOFF Flanges
- AISI 316Ti Flanges
- SS 316Ti Large Tongue Flange
- ASME SA182 F316Ti Stainless Steel Pipe Flanges
- ASTM A182 F316Ti SS Forged Flange
- Stainless Steel 316Ti Orifice Flanges
- Stainless Steel 316Ti Spacer Ring Flanges
- SS 316Ti Slip On Plate Flange
- Stainless Steel 316Ti Paddle Blank and Spacer
- 316Ti Stainless Steel Threaded Flanges
- 316Ti Stainless Steel SWFF Flanges
- Stainless Steel 316Ti Flanges Supplier in India
- Stainless Steel 316Ti Paddle Blind Flange
- Stainless Steel 316Ti BLFF Flanges
- SS 316Ti Flanges Wholesale in Mumbai
- 316Ti SS Weld Neck Raised Face Flanges
- Stainless Steel 316Ti WNFF Flanges
- Stainless Steel 316Ti Large Diameter Flange
- Stainless Steel 316Ti Threaded Flanges Exporters
- 316Ti Stainless Steel SWRF Flanges
- Stainless Steel 316Ti Loose Plate Flange
- 316Ti Stainless Steel Flat Face Blind Flange
- Stainless Steel 316Ti SORF Flanges
- 316Ti Stainless Steel Flanges Stockist In India
- Stainless Steel 316Ti Pipe Flange Spacer Ring
- SUS 316Ti Screwed Flanges
- Stainless Steel UNS S31635 Flange
Chemical Properties Of 316Ti Stainless Steel Flanges
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
SS 316Ti Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316Ti Flanges Dimensions
| NPS (in.) |
316Ti Stainless Steel Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
SS 316Ti Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
UNS S31635 Flange Pressure Rating Chart
| ASME | Pressure Temperature Ratings For Stainless Steel 316Ti Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
316Ti SS Flanges Price List
- top quality 316ti stainless steel flanges with factory price
FOB Price: US$ 2.00 - 4.50 / Piece - ss 316ti plate flanges price per ton
FOB Price: US$ 9.00 - 18.00 / Piece - cheap price 316ti stainless steel Flanges
FOB Price: US$ 2.50 - 100.00 / Piece - 316ti stainless steel blrtj flange price list
FOB Price: US$ 1.50 - 70.00 / Piece - 316ti stainless steel raised face blind flange
FOB Price: US$ 19.00 - 200.00 / Piece - 1.4571 sus 316ti ss weld neck pipe flange price
FOB Price: US$ 5.00 - 210.00 / Piece - 316ti stainless steel socket wld raised face flanges (swrf)
FOB Price: US$ 1.00 - 190.00 / Piece - astm a182 316ti stainless steel flanges
FOB Price: US$ 3.00 - 4.50 / Piece - 316ti stainless steel ansi 150lbs bsp threaded flanges
FOB Price: US$ 1.00 - 140.00 / Piece - asme b16.5 316ti stainless steel rf flange
FOB Price: US$ 7.00 - 185.00 / Piece - ansi b16.5 ss 316ti threaded / screwed flanges
FOB Price: US$ 3.00 - 90.00 / Piece - aisi 316ti flange cost
FOB Price: US$ 0.8 - 60.00 / Piece
ASTM A182 F316Ti Flanges Manufacturers in India | 316Ti Stainless Steel Forged Threaded Flange | 316Ti SS Plate Flanges Stockists | Supplier of 316Ti Steel Flanges | SS 316Ti Flanges Latest Price | 316Ti Stainless Steel Flanges Suppliers | SS 316Ti Flange Exporters
